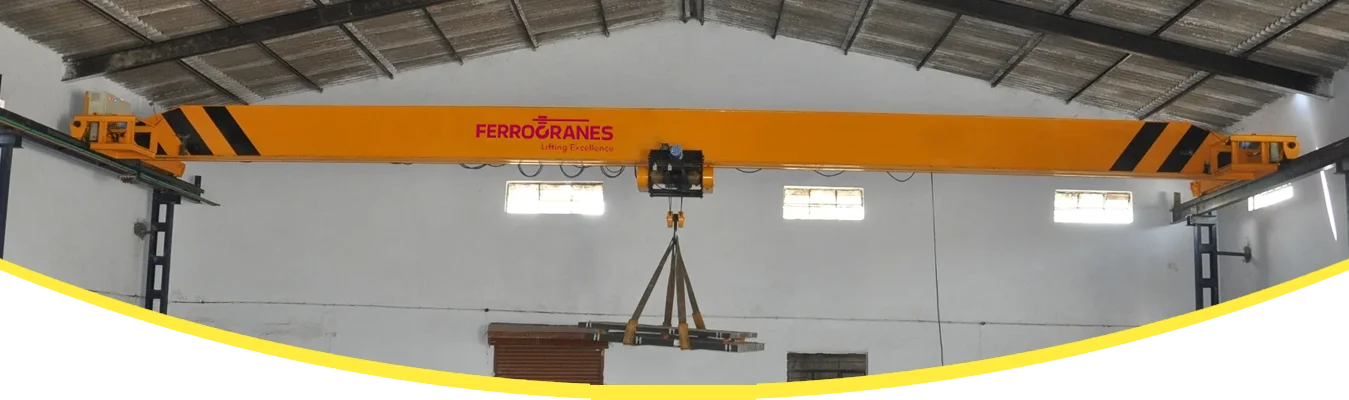

Single Girder EOT Cranes
EOT (Electric Overhead Traveling) Cranes are the backbone of modern material handling in workshops, warehouses, and industrial facilities. Designed for high performance and reliability, these cranes provide smooth movement of heavy loads across the shop floor with precision control.
Our Single Girder models are ideal for medium-duty applications offering efficient lifting with optimal headroom, while Double Girder cranes are engineered for heavy-duty operations where higher lifting heights and longer spans are required.

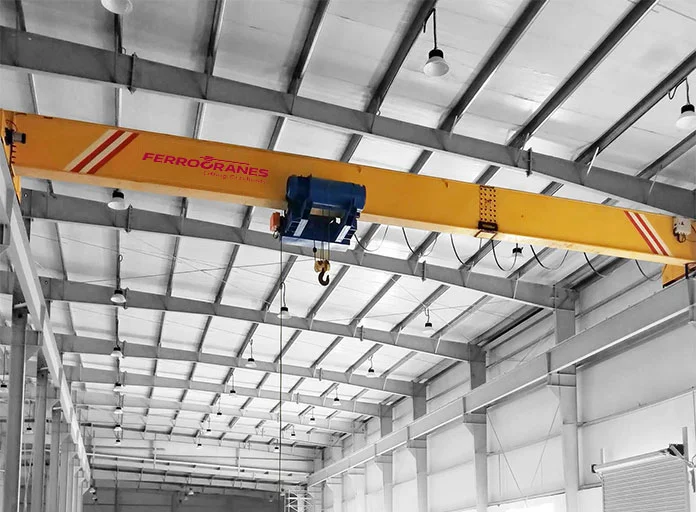

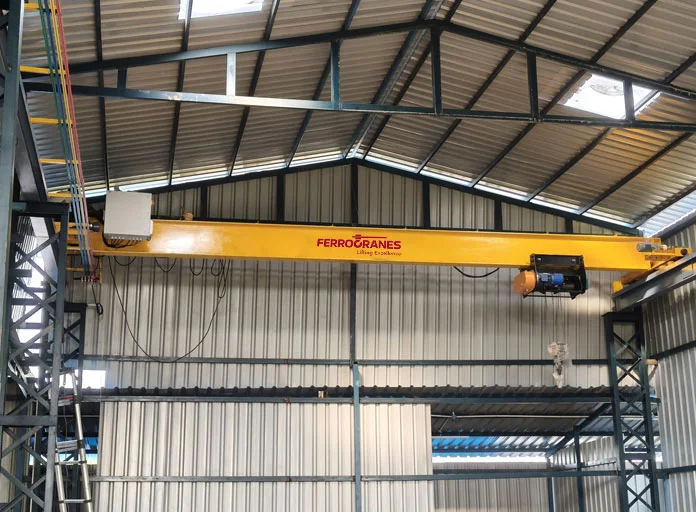

Single Girder EOT Cranes
Single Girder EOT Cranes
Technical Specification
| Capacity Range: | 1 Ton to 20 Tons |
|---|---|
| Span: | Up to 35 meters (customizable) |
| Lifting Height: | Up to 25 meters |
| Hoisting Mechanism: | Electric Wire Rope Hoist / Electric Chain Hoist |
| Operation: | Operation – Pendant Control of Radio Remote Control |
| Speed Range: | VFD-driven smooth acceleration with synchronized motion control |
| Bridge Type: | Single Girder (Compact, Lightweight) |
| Structure: | Box or I-Beam type with precision-welded joints for rigidity |
| Standards: | IS 3177, IS 807, FEM |
| Duty Classification: | IS:3177-2020 (M1 to M8) /FEM (1Bm to 4m) |
| Power Supply: | DSL / Drag Chain / Festoon System |
Key Highlights
Compact design ensuring maximum hook approach and floor coverage
Smooth, low-noise operation with high energy efficiency.
Modular construction for quick installation and easy maintenance
Custom control panels with overload protection and safety limit switches
Ideal for manufacturing units, engineering workshops, and assembly lines
High-strength structural steel construction designed for minimal deflection
Precision-machined wheels and geared drive assemblies for long service life
Hardened and ground rope drums with grooving for increased rope life
Fail-safe electromagnetic brakes for instant stopping under emergency load with provision of manual release lever
IP55 rated motors and control panels suitable for industrial environments
Shock-loaded and fatigue-tested hoist mechanisms for continuous duty cycles
Heat-treated gears with noise-reduction profile and alignment accuracy
Flameproof / Explosion-proof design for hazardous industrial zones (Zone 1 or 2, Gas Group – IIA, IIB or IIC, Temp. T1 to T6)
Anti-sway automation for improved load stability
Tandem crane operation with synchronization for long/oversized loads
Condition monitoring system with IoT-based diagnostics
Stainless-steel wire rope for corrosive or clean-room environments
Auto lubrication system for bearings, gears, and wire rope
Hot metal cranes with heat-shielding protection and special metallurgy
Manual/Automatic fail-safe rail clamps and storm locks for outdoor cranes
A Target Positioning System to reduced Cycle Times for repetitive load movements between preset points.
Regenerative Drives to reduce power consumption for M7-M8 Duty Cranes.
Higher productivity through faster material movement and reduced downtime
Reduced maintenance cost due to modular components and robust design
Safety-assured operations with overload protection and multi-level limit controls
Space efficiency with minimal approach dimensions and optimized headroom
Enhanced durability suitable for round-the-clock industrial usage
Flexible integrations with conveyors, robotic handling, furnaces, and automated systems
Fully customizable based on industry type, duty classification, and environment
