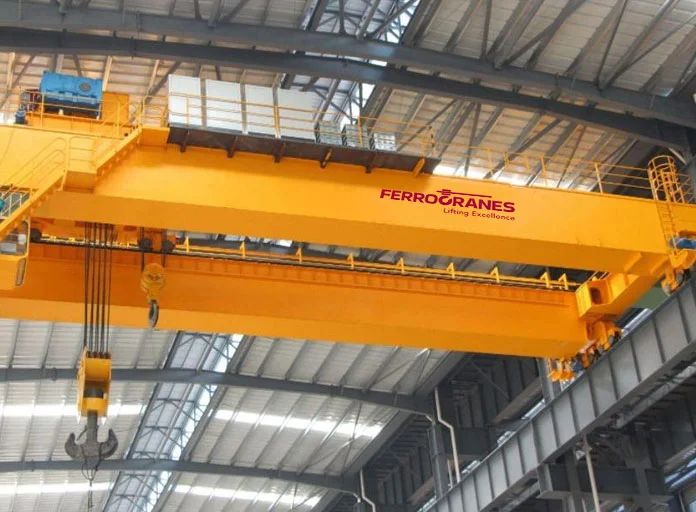

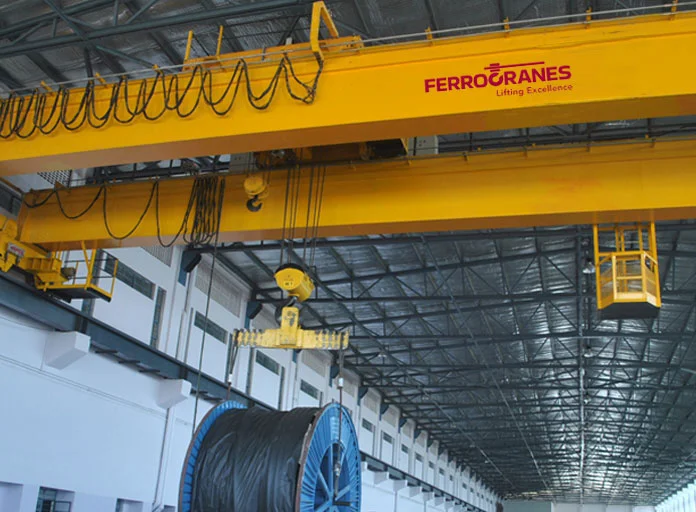

Double Girder EOT Cranes
Double Girder EOT Cranes are engineered for demanding, heavy-duty industrial operations where higher lifting heights, extended spans, and robust structural stability are essential. Built with a dual-girder bridge configuration, these cranes support higher load capacities, improved hook approach, and seamless integration with auxiliary lifting attachments. They are widely deployed in steel plants, fabrication yards, heavy engineering units, and automated production lines requiring continuous, high-cycle operations.
Double Girder EOT Cranes
Double Girder EOT Cranes
Technical Specification
| Capacity Range: | 5 Tons to 200 Tons |
|---|---|
| Span: | Up to 40 meters (custom-engineered) |
| Lifting Height: | Up to 30 meters |
| Hoisting Mechanism: | Crab Unit / Electric Wire Rope Hoist (Heavy-Duty) |
| Operation: | Pendant, Radio Remote, or Cabin Control |
| Bridge Type: | Double Girder Box or Welded Type |
| Standards: | IS 3177, IS 807, FEM |
| Drive System: | Helical geared motors with VFD-based motion control |
| Duty Classification: | IS:3177-2020 (M1 to M8) /FEM (1Bm to 4m) |
| End Carriage: | Machined, aligned long-travel assemblies with shock-resistant buffers |
| Power Supply: | DSL / Drag Chain / Festoon System |
Key Highlights
Superior lifting capacity with precise load handling
Higher hook lift resulting from elevated crab mechanism
Rigid girder design enabling wider spans and enhanced stability
Smooth acceleration with synchronized VFD motion across LT/CT/Hoist
Ideal for 24×7 industrial duty cycles and high load frequencies
Heavy-gauge structural steel construction minimizing dynamic deflection
Precision-machined wheel assemblies with surface-hardened treads
Fail-safe electromagnetic / DC disc brakes on hoist and travel drives
IP55-rated control panels with overload safety interlocks
Heat-treated, low-noise gear train for extended service life
Modular crab unit designed for quick maintenance and part accessibility
Anti-jerk start through soft-start VFD system across all motions
Flameproof / Explosion-proof design for hazardous industrial zones (Zone 1 or 2, Gas Group – IIA, IIB or IIC, Temp. T1 to T6)
Tandem crane operation for oversized load handling
Anti-sway and load positioning automation
Condition monitoring with IoT-enabled diagnostics
Auto lubrication for gears, bearings, and rope drums
Hot metal / ladle crane design with heat-shielded components
Storm locks, rail clamps, and travel limit systems for outdoor cranes
Stainless-steel or anti-corrosion wire ropes for chemical environments
A Target Positioning System to reduced Cycle Times for repetitive load movements between preset points.
Regenerative Drives to reduce power consumption for M7-M8 Duty Cranes.
Higher operational efficiency with reduced cycle time
Extended lifecycle due to rugged, low-fatigue structural design
Improved safety with multi-layer protection and fail-safe systems
Reduced downtime through modular construction and easy accessibility
Optimized shop-floor utilization with superior hook approach
fully customizable to process, industry, and environmental requirements
Compatible with conveyors, robotic lines, furnaces, and automated handling systems
