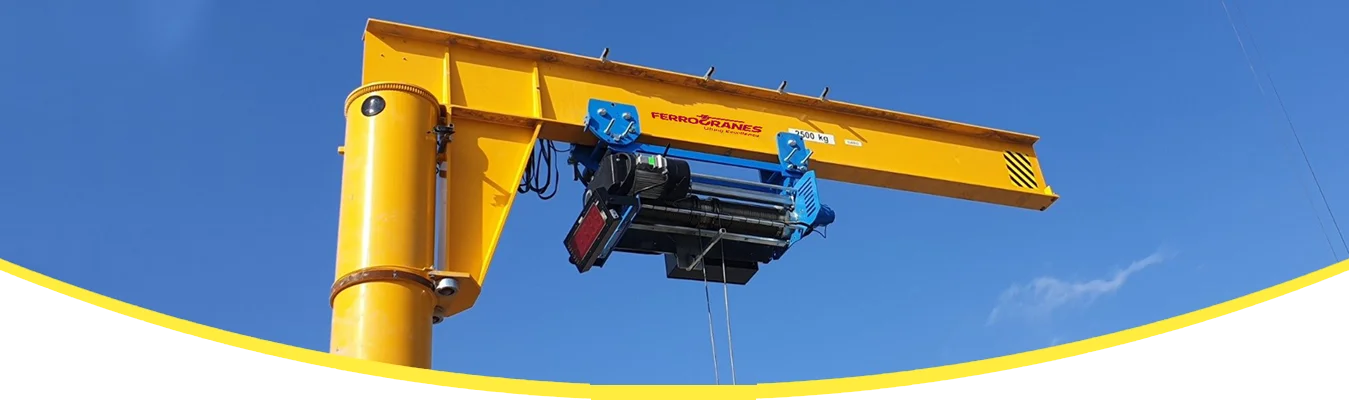

Jib Cranes (Pillar Mounted | Wall Mounted)
Jib Cranes are designed for spot handling and workstation-level lifting where materials need to be moved quickly within a limited working radius. Their compact build and smooth rotational movement make them ideal for loading points, machine shops, welding bays, assembly stations, and packaging zones.
Available in pillar-mounted free-standing models and wall-mounted variants, they offer reliable lifting support without disrupting the shop layout or requiring major structural changes.

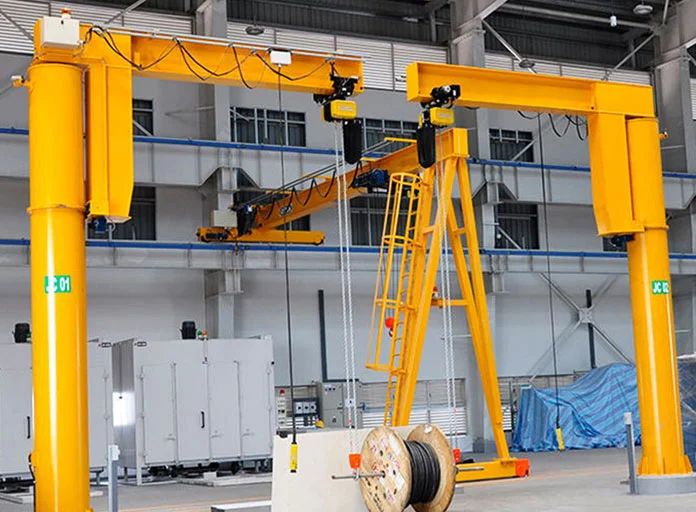

Pillar Mounted Jib Cranes

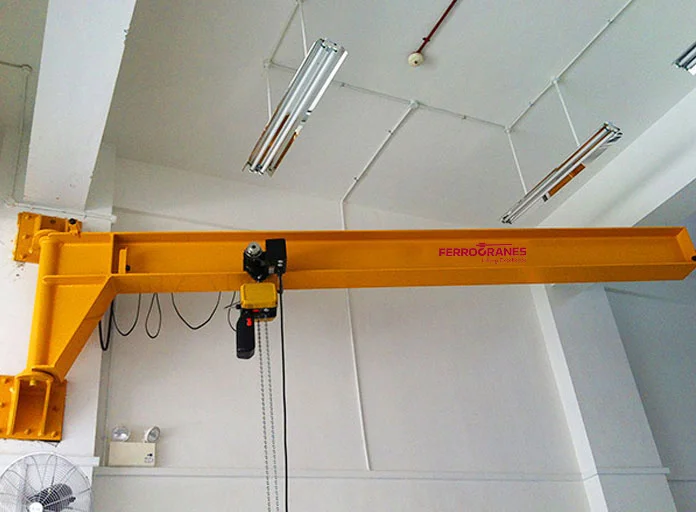

Wall Mounted Jib Cranes
Technical Specification
| Capacity Range: | Up to 10 Tons |
|---|---|
| Slewing Range: | 180° to 360° (manual or motorized rotation) |
| Jib Arm Length: | Up to 6 meters |
| Mounting Options: | Pillar Mounted / Wall Mounted |
| Compatible Hoists: | Electric Wire Rope Hoist / Electric Chain Hoist |
| Rotation System: | Slewing bearing / Pivot pin assembly with tapered roller support |
| Control Options: | Pendant push button / Wireless remote |
Key Highlights
Flexible radial coverage ideal for repetitive workstation movement
Compact mounting footprint without affecting traffic lanes or floor layout
Smooth rotation with balanced load transfer and minimal operator effort
Easy to install, relocate, and integrate with existing shop cranes or conveyors
Rigid steel arm designed for low deflection and smooth torque transfer
Heavy-duty slew mechanism with precision bearings for long service life
Modular assembly enabling quick installation and alignment
VFD-driven hoist and trolley movement for controlled acceleration
Dust-proof and weather-shielded electrical enclosures for industrial duty
Compatibility with wall brackets, pedestal columns, and custom base plates
Motorized slewing with soft-start drive for heavy or repetitive loads
Articulated jib arms for multi-point, obstacle-free movement
Stainless-steel chain hoists for corrosive or food-grade environments
Spark-proof / explosion-proof design for chemical and hazardous zones
Custom-height columns, extended reaches, and foundation-free base options
Integrated lighting, load display indicators, and limit switches
Higher productivity in assembly and machine-side handling
Reduced manpower and fatigue due to effortless load movement
Space-efficient installation without overhead runways or columns
Low running cost with minimal maintenance and fewer wearing components
Enhances workflow when used alongside EOT or gantry cranes for local operations
Customizable for diverse industries from light workshops to heavy fabrication
