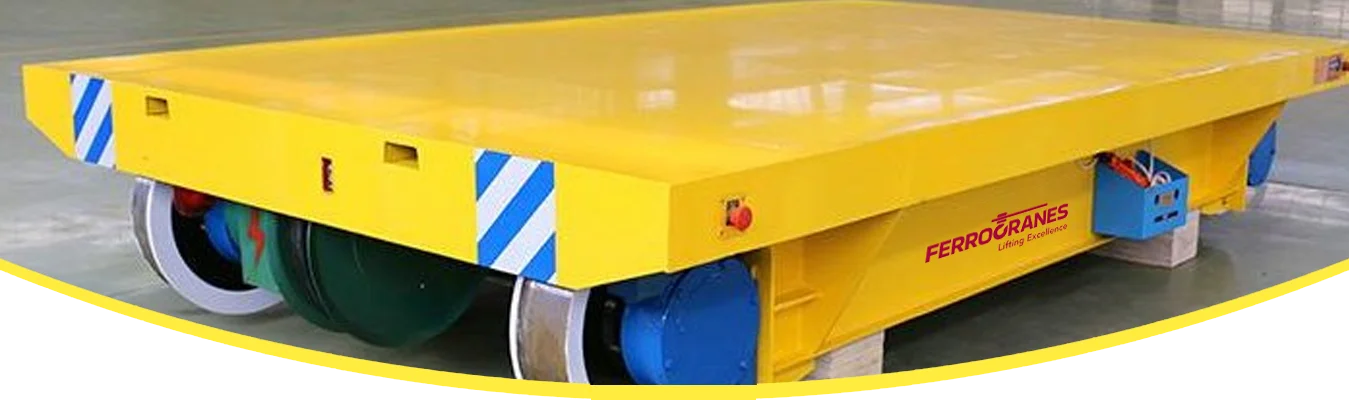

Motorized Transfer Trolleys
Motorized Transfer Trolleys are self-propelled platforms designed to move heavy loads between bays, fabrication zones, or assembly stations with controlled, safe, and efficient motion. Depending on layout needs, they can be supplied as rail-mounted systems for guided travel or battery-powered units for unrestricted movement without fixed tracks. These trolleys are widely used where overhead cranes alone cannot optimize intra-shop movement.
Motorized Transfer Trolleys
Technical Specification
| Capacity Range: | 5 Tons to 200 Tons |
|---|---|
| Drive System: | AC / DC geared motor |
| Travel Speed: | 5–25 m/min (variable with VFD control) |
| Power Source: | Battery system / Cable reeling drum / Festoon supply |
| Control Modes: | Wireless remote / Pendant control / PLC-based automation |
Key Highlights
Ideal for inter-bay transfer and assembly operations
Rugged build with precise motion control and smooth acceleration
Low noise, energy-efficient, and minimal maintenance requirement
Heavy-duty welded frame engineered to withstand dynamic and point loads
High-traction drive wheels or rail-guided wheels based on application
Shock-resistant gearbox and motor assembly for continuous duty cycles
Low-height platform to accommodate large components without overhead interference
Programmable speed profiles and soft-start/soft-stop functionality
IP-rated electricals for dusty or high-temperature industrial environments
Integrated safety systems: emergency stop, audible alarms, limit sensors
Omni-directional steering for narrow aisles and curved paths
Hydraulic or mechanical load clamps for securing irregular components
Auto-docking system for integration with conveyors, presses, or assembly bays
Explosion-proof design for oil & gas, paint shops, or chemical applications
Remote diagnostics and condition monitoring modules
Spring-loaded suspension systems for uneven floors
Dual-power hybrid trolleys (battery + cable) for extended duty cycles
Streamlines workflow by enabling smooth, horizontal movement across bays
Reduces dependency on overhead cranes, freeing crane capacity for lifting tasks
Enhances safety through controlled, low-sway motion and operator-friendly controls
Flexible deployment with battery models suitable for reconfigurable shop layouts
Low operational cost due to modular design and minimal mechanical wear
Custom-configurable for heavy fabrication yards, machining lines, furnace loading, or component transfer applications
